Product Feature :

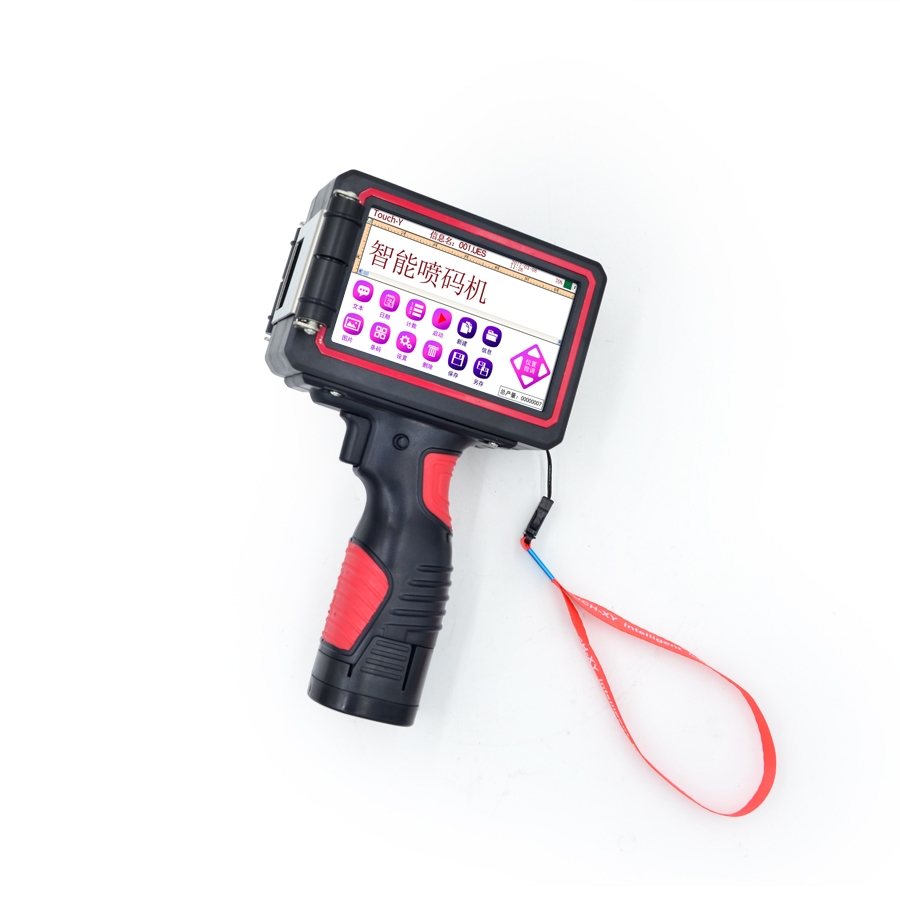

Hand held Smart Expiry Date Ink jet Coding Printer is one of the latest products in our company. More attractive appearance and more advanced smart operation system.
Easy Operation, Free Maintenance.Smart hand held ink jet coding printer widely prints on almost any surface. For example: Board, Pipe, Plastic, Metal, Carton, Steel, Food etc.
Voltage: AC 100V-240V Gross Power: 33.6W
Dimensions(L*W*H): H220*W120*D130mm Net Weight: 0.9KG
Packing Dimensions(L*W*H): 330*280*220mm Gross Weight: 2.8KG
Certification: CE Certification Print head: Thermal ink jet 2.5
Operation system: Linux CUP: Quard core 1.4GHz
Interface: USB, RS232, Bluetooth, Wi-fi Material of printer: ABS+PC
Language: Chinese, English, Turkish, Arabic and etc. Print height: 12.7mm/25.4mm/48mm
Print distance: Best quality with 2-5mm
Print resolution: 600DPI maximum
Ink type: Water-based/42ml, Solvent/42ml
Print Content:Chinese,English,Numbers,Symbols,QR code,bar code,pictures,dates,counter.
Technical parameter
Machine size | 140*80*235mm (include handheld) |
Weight | About 800g(without ink cartridge) |
Screen size | 5 inchs touch screen (108*65mm) |
Store information | Infinite storage |
Segmenting function | 5 sections |
Precision of printing | 300-600DPI |
Counting unit | 1-8 digits |
Printing bar code | Bar code, QR code, variable QR code |
External interface | Charging interface, R232 serial port, USB |
Using environment | Temper:0-40℃、humidity:10-80% |
Oily ink | Black, red, blue, green, yellow, invisible |
Quick drying ink | Black, red, blue, green, yellow, orange, white, invisible |
Ink cartridge capacity | 42CC（half inch）、45CC（1 inch） |
Ink type | Dry, oily, water-based |
Spray print library | Synchronize with machines and computers |
Spray printing distance | 2-5mm |
Jet printing height | 2-12.7mm（T-Y is 25.4mm） |
Speed of printing | 60m/min |
Printing content | Date, counting, batch number, serial number, pictures etc |
Power parameter | DC 16.8V lithium battery; 16V3A the power adapter |
